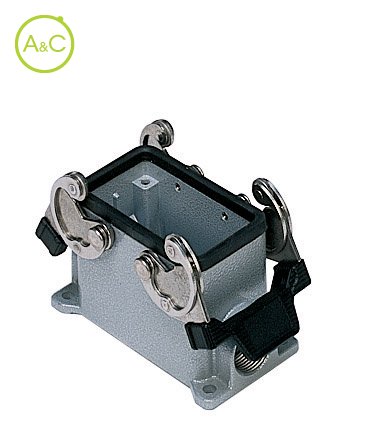

Surface mounting housings, high construction

  • With 2 levers
  • Aluminium, Metric entry
Download product sheet

Entry

  • 1xM25
  • 1xM32
  • 1xM40
  • 2xM25
  • 2xM32
  • 2xM40
Article Number MAP 10.32
Protection Degree IP66
Material Housing Aluminium
Height 74 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Eigenschappen verschillen tussen varianten en subvarianten
