- General

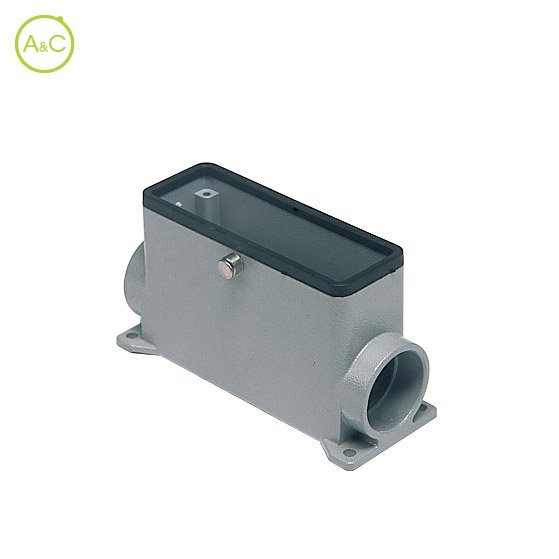

Article Number | MAP 10 YC232 |
Protection Degree | IP65 |
Material Housing | Aluminium |
Height | 74 mm |
Length | 93.5 |
Extra Information |
Corrosion resistant UV resistant With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE |
Locking Mechanism | Central clamp |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Two-sided |
Width | 57 mm |
Eigenschappen verschillen tussen varianten en subvarianten
