Entry
- 1xM32
- 1xM40

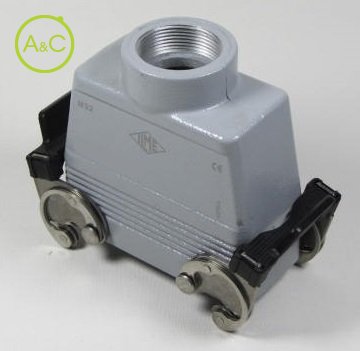

Article Number | MAV 10 X32* |
Protection Degree | IP66 |
Material Housing | Aluminium |
Height | 85 mm |
Remark | may be combined with enclosures: CHI 10 CS; CHI 10 CP; CHI 10 C; CHP 10 CS; CHP 10 CP; CHP 10 C; CAP 10 CS; CAP 10 CP; CAP 10 C; MHP 10 CS; MHP 10 CP; MAP 10 CS; MAP 10 CP |
Length | 73 |
Extra Information |
Corrosion resistant UV resistant With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE |
Locking Mechanism | Double locking levers |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Top entry |
Width | 59 mm |
Eigenschappen verschillen tussen varianten en subvarianten
