Receptacle Housing

PNI CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	PNIRR-02V	PNIRR-02VF
Number Of Contacts	2	2
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.00 mm	2.00 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	100 V	100 V
Remark	With panel locks	Without panel locks

Article Number	PNIRR-03V	PNIRR-03VF
Number Of Contacts	3	3
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.00 mm	2.00 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	100 V	100 V
Remark	With panel locks	Without panel locks

Article Number	PNIRR-04V	PNIRR-04VF
Number Of Contacts	4	4
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.00 mm	2.00 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	100 V	100 V
Remark	With panel locks	Without panel locks

Article Number	PNIRR-05V	PNIRR-05VF
Number Of Contacts	5	5
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.00 mm	2.00 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	100 V	100 V
Remark	With panel locks	Without panel locks

Article Number	PNIRR-06V	PNIRR-06VF
Number Of Contacts	6	6
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.00 mm	2.00 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	100 V	100 V
Remark	With panel locks	Without panel locks

Article Number	PNIRR-08V	PNIRR-08VF
Number Of Contacts	8	8
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.00 mm	2.00 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	100 V	100 V
Remark	With panel locks	Without panel locks

Article Number	PNIRR-10V	PNIRR-10VF
Number Of Contacts	10	10
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.0mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.00 mm	2.00 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	100 V	100 V
Remark	With panel locks	Without panel locks

Eigenschappen verschillen tussen varianten en subvarianten

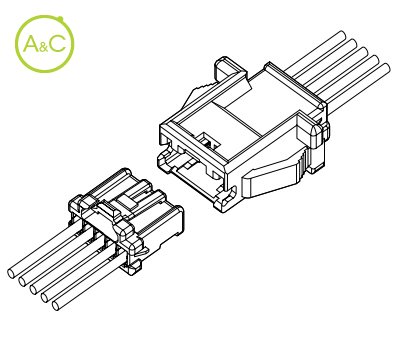

This connector is a 2.0mm pitch wire to wire connector, having incomplete mating prevention mechanism. Inertial lock structure Finger-friendly design Secure locking structure Mountable on a variety of panels Secondary retainer RoHS Compliant
