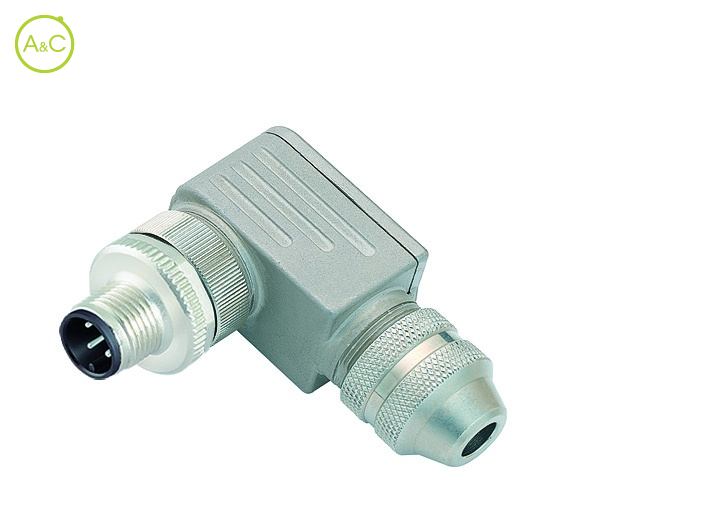

Male round connector

Stainless steel nut + plastic body

RDK - RDKM 00410 075

RDK - RDKM 00410 075

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Number Of Poles

4
5

Article Number	RDKM 00410 075	RDKM 00410 095
Number Of Contacts	4	4
Protection Degree	IP67*	IP67*
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
Cable Diameter	4-6,5 mm	6-8 mm
Fixing Thread	M12	M12
Housing Material	Plastic	Plastic
Housing Oil Resistance	Very good	Very good
Contact Material	Optalloy	Optalloy
Max. Wire Section	0,75 mm²	0,75 mm²
Locking Nut Material	Stainless steel	Stainless steel
Voltage Vdc	1 to 250	1 to 250
Voltage Vac	1 to 250	1 to 250
Max. Currrent	4 A @40°C	4 A @40°C
Contact Gender	M	M
Coding	A	A
Cabling System	Screw vite	Screw vite
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDKM 00510 075	RDKM 00510 095
Number Of Contacts	5	5
Protection Degree	IP67*	IP67*
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
Cable Diameter	4-6,5 mm	6-8 mm
Fixing Thread	M12	M12
Housing Material	Plastic	Plastic
Housing Oil Resistance	Very good	Very good
Contact Material	Optalloy	Optalloy
Max. Wire Section	0,75 mm²	0,75 mm²
Locking Nut Material	Stainless steel	Stainless steel
Voltage Vdc	1 to 60	1 to 60
Voltage Vac	1 to 60	1 to 60
Max. Currrent	4 A @40°C	4 A @40°C
Contact Gender	M	M
Coding	A	A
Cabling System	Screw vite	Screw vite
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Eigenschappen verschillen tussen varianten en subvarianten
