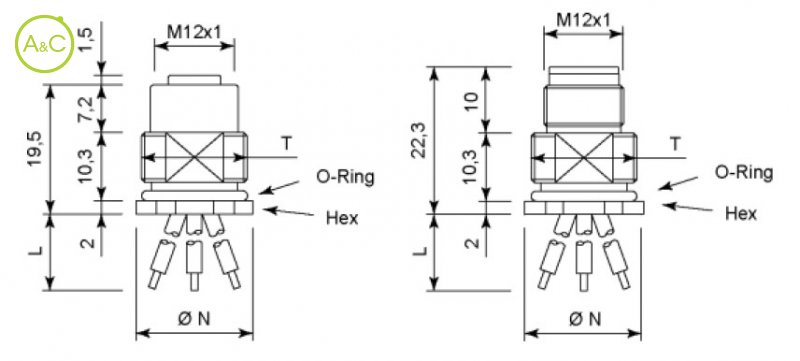

Male round receptacle

RDS - RDSM 00300

RDS - RDSM 00300

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Number Of Poles

3
4
5
8
12

Article Number	RDSM 00300 2A1 0200 000
Number Of Contacts	3
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	4 A @40°C
Contact Gender	M
Ground Pole	No
Max. Number Wires	3
Wire Colour	bn1, bu3, bk4
Coding	A
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDSM 00400 2A1 0200 000
Number Of Contacts	4
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	4 A @40°C
Contact Gender	M
Ground Pole	No
Max. Number Wires	4
Wire Colour	bn1, wh2, bu3, bk4,
Coding	A
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDSM 00500 2A1 0200 000	RDSM 00530 2A1 0200 000
Number Of Contacts	5	5
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Fixing Thread	M16	M16
Housing Material	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Voltage Vdc	1 to 60	1 to 60
Voltage Vac	1 to 60	1 to 60
Max. Currrent	4 A @40°C	4 A @40°C
Contact Gender	M	M
Ground Pole	No	Yes
Max. Number Wires	5	5
Wire Colour	bn1, wh2, bu3, bk4, gy5	bn1, wh2, bu3, bk4, gn/ye5
Coding	A	A
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDSM 00800 2A2 0200 000
Number Of Contacts	8
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	2 A @40°C
Contact Gender	M
Ground Pole	No
Max. Number Wires	8
Wire Colour	din 47100 #1
Coding	A
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDSM 01200 2A2 0200 000
Number Of Contacts	12
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	1,5 A @40°C
Contact Gender	M
Ground Pole	No
Max. Number Wires	12
Wire Colour	din 47100 #3
Coding	A
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Eigenschappen verschillen tussen varianten en subvarianten
