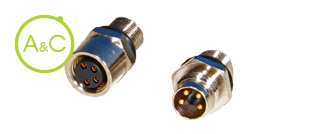

Male round receptacle

REE - REEM 0300W000

REE - REEM 0300W000

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Number Of Poles

3
4
5

Article Number	REEM 0300 000 W000 000
Number Of Contacts	3
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Housing Material	Brass nickel plated
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 60
Voltage Vac	1 to 60
Max. Currrent	3 A @40°C
Contact Gender	M
Coding	A
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	REEM 0400 000 W000 000
Number Of Contacts	4
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Housing Material	Brass nickel plated
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	3 A @40°C
Contact Gender	M
Coding	A
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	REEM 0500 000 W000 000
Number Of Contacts	5
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Housing Material	Brass nickel plated
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	3 A @40°C
Contact Gender	M
Coding	B
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Eigenschappen verschillen tussen varianten en subvarianten
