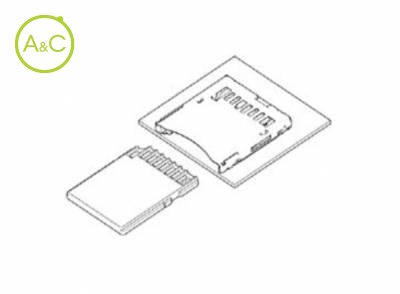

Reversed Connector for SD Card and Multi Media Card

SDK CONNECTOR REVERSE TYPE

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	SDKR-9BRS-K13-G-TB
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	SD Card Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	5 V
Standard	SD
Pcb Mount Style	Surface Mount Technology (SMT)

Eigenschappen verschillen tussen varianten en subvarianten

This connector is designed for SD Card & MMC (Multi Media Card), complying with the SD Card Association standard, and is with the switch for Write-protection & Card detection. Due to Push-push mechanism design, its card can be easily ejected by push-push operation. Space saving design, 24.1mm(W)x30.1mm(D)x2.8mm(H) The enough amount of card ejection (8.4mm) 10,000 mating cycles is guaranteed Prevention of reverse card insertion RoHS Compliant
