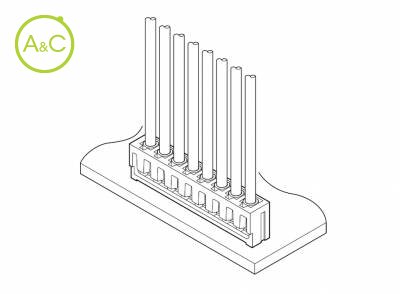

The SGN 2mm pitch wire-to-board crimp style connector only has a PCB mountable height of 4mm and a depth of 2.9mm, this makes this ideal for PCB applications where space is at a premium and product density a must. Available in 8 to 14 circuit variations, this THT connector is a very simple and economical interconnect solution for small application devices such as; DVD players, 'In car' audio systems etc. Ultra low profile Despite its top entry style, as a result of restraining the connector height, equipment can be designed without wasting internal space. Surface usage on the PC board is reduced SGN connector is much smaller in width than existing product. This will help to reduce surface usage without changing the cable. Reliable mounting The spring feature of the contact part to the PC board will contribute to accommodate the connector securely even before soldering. One touch connection A one-touch operation to make multiple circuit jumper connection will realize rationalization of production. Standards UL Recognized E60389 RoHS Compliant
