Applicable Wire
- AWG 22 to 20
Article Number | SHCMW-A03T-040 |
Upper Temperature | +100 °C |
Lower Temperature | -40 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Applicable Wire Size | 0.3 to 0.5 (AWG #22 to #20) mm² |
Connection Type | Automotive |
Pitch / Style | 2.54 mm |
Rated Current (ac/dc) | 5 C, DC (0.5mm2, Single Circuit) A |
Rated Voltage (ac/dc) | 14 V |
Remark | Secure locking device |
Eigenschappen verschillen tussen varianten en subvarianten
Developed to exceed and comply with USCAR (United States Council for Automotive Research) specifications. The HCM connector has now been added to JST's general automotive connector range.

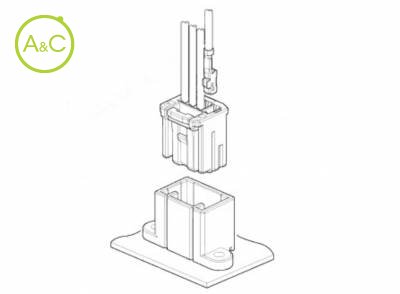

Designed with automotive safety requirements in mind, this 2.54mm pitch wire-to-wire and wire-to-board connector system incorporates a secondary lock feature that not only ensures correct connector assembly, but also facilitates connector strength and durability.
In general, this connector has been developed to be very small and universal and is more than suitable for automotive applications such as; Display, ECU, Relay and other small electrical units.
Low profile, miniaturization in the direction of mating
Using the short length female terminal, low profile in the direction of mating is realized.
Variations
We have an abundant variation of PC board lock mechanism, lock type, wire-to-wire type and so on, according to your needs.
Reliability and achievement
Ensuring the reliabilities of an indispensable characteristic and mechanism etc, to the connector for automobile, this product has several adoption results proven in automotive electrical equipment miniaturized rapidly.
Standard
USCAR
RoHS Compliant
