Terug naar productoverzicht
Download product sheet
Terminal for SIN CONNECTOR AWG 30 to 12
- SIN CONNECTOR
Meer info over dit merk:
JST
JST
Applicable Wire
- AWG 12
- AWG 14
- AWG 18 to 16
- AWG 22 to 18
- AWG 24 to 20
- AWG 26 to 20
- AWG 28 to 26
- AWG 30 to 24
- AWG 30 to 26
| Article Number | SIN-81T-3.6S |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Single-Circuit Board-in Crimp Style Terminal |
| Applicable Wire Size | 3.3 (AWG #12) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm |
| Rated Current (ac/dc) | Depends on pplicble wires A |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark | Shape F |
| Article Number | SIN-61T-2.6S |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Single-Circuit Board-in Crimp Style Terminal |
| Applicable Wire Size | 2.0 (AWG #14) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm |
| Rated Current (ac/dc) | Depends on pplicble wires A |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark | Shape F |
| Article Number | SIN-41T-2.4S |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Single-Circuit Board-in Crimp Style Terminal |
| Applicable Wire Size | 0.83 to 1.31 (AWG #18 to #16) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm |
| Rated Current (ac/dc) | Depends on pplicble wires A |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark | Shape F |
| Article Number | SIN-21T-1.8 | SIN-21T-1.8S |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | Single-Circuit Board-in Crimp Style Terminal | Single-Circuit Board-in Crimp Style Terminal |
| Applicable Wire Size | 0.30 to 0.83 (AWG #22 to #18) mm² | 0.30 to 0.83 (AWG #22 to #18) mm² |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm | Single-Circuit mm |
| Rated Current (ac/dc) | Depends on pplicble wires A | Depends on pplicble wires A |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Shape D | Shape F |
| Article Number | SIN-01T-1.2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Single-Circuit Board-in Crimp Style Terminal |
| Applicable Wire Size | 0.2 to 0.5 ( AWG #24 to #20) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm |
| Rated Current (ac/dc) | Depends on pplicble wires A |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark | Shape B |
| Article Number | SIN-01T-1.8 | SIN-01T-1.8N |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | Single-Circuit Board-in Crimp Style Terminal | Single-Circuit Board-in Crimp Style Terminal |
| Applicable Wire Size | 0.13 to 0.5(AWG #26 to #20) mm² | 0.13 to 0.5(AWG #26 to #20) mm² |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm | Single-Circuit mm |
| Rated Current (ac/dc) | Depends on pplicble wires A | Depends on pplicble wires A |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Shape C | Shape C, requires less force for insertion into a PC board |
| Article Number | SIN-002T-1.0 | SIN-002T-1.0S | SIN-002T-1.2N |
| Upper Temperature | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C | -25 °C |
| General Description | Single-Circuit Board-in Crimp Style Terminal | Single-Circuit Board-in Crimp Style Terminal | Single-Circuit Board-in Crimp Style Terminal |
| Applicable Wire Size | 0.08 to 0.13 (AWG #28 to #26) mm² | 0.08 to 0.13 (AWG #28 to #26) mm² | 0.08 to 0.13 (AWG #28 to #26) mm² |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm | Single-Circuit mm | Single-Circuit mm |
| Rated Current (ac/dc) | Depends on pplicble wires A | Depends on pplicble wires A | Depends on pplicble wires A |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Shape A Insulation O.D.: 0.8 to 1.3 mm | Shape E | Shape A Insulation O.D.: 0.9 to 1.4 mm |
| Article Number | SIN-001T-1.2B |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Single-Circuit Board-in Crimp Style Terminal |
| Applicable Wire Size | 0.05 to 0.22 (AWG #30 to #24) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm |
| Rated Current (ac/dc) | Depends on pplicble wires A |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark | Shape D |
| Article Number | SIN-001T-1.2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Single-Circuit Board-in Crimp Style Terminal |
| Applicable Wire Size | 0.05 to 0.15 (AWG #30 to #26) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm |
| Rated Current (ac/dc) | Depends on pplicble wires A |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark | Shape B |
Eigenschappen verschillen tussen varianten en subvarianten
It is time consuming to directly solder the many wires that are required on densely packed printed circuit boards.

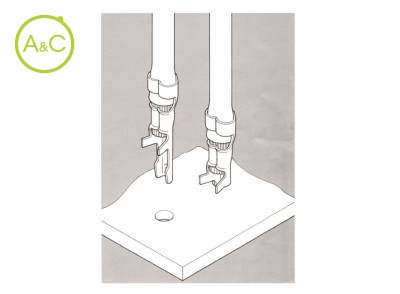

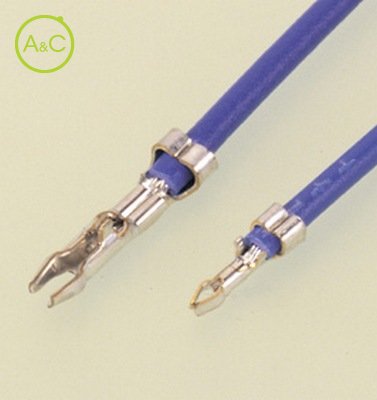

The SIN terminal is crimped to a wire, inserted into a hole in a printed circuit board, then soldered.
Solderability is enhanced because solder does not enter the wire, thus ensuring a safe and secure connection.
This terminal is ideal for permanent connection of jumper wires onto a printed circuit board or for connection to external circuits.
Compliant board retention feature insures secure mounting before and during soldering.
Wires can be machine secured to terminals.
Strain relief minimizes wires
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
