Ilme
- General

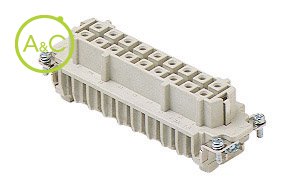

| Article Number | CMCEF 16 |
| Pollution Degree | 3 |
| Number Of Poles | 16 |
| Connection Type | Crimp connection |
| Contact Type | Female |
| Required Crimp Contacts | CCFA 0.3, CCFA 0.5, CCFA 0.7, CCFA 1.0, CCFA 1.5, CCFA 2.5, CCFA 3.0, CCFA 4.0, CCFD 0.3, CCFD 0.5, CCFD 0.7, CCFD 1.0, CCFD 1.5, CCFD 2.5, CCFD 3.0, CCFD 4.0, CCFC 0.3, CCFC 0.5, CCFF 0.3, CCFF 0.5, CCF2D 0.3, CCF2D 0.5, CCF2D 0.7, CCF2D 1.0, CCF2D 1.5, CCF2D 2.5, CCF2D 3.0, CCF2D 4.0, CCFJD 0.3, CCFJD 0.5, CCFJD 0.7, CCFJD 1.0, CCFJD 1.5, CCFJD 2.5, CCFJD 3.0, CCFJD 4.0 |
| Extra Information | Contact insert without contacts |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Required Housing |
T-type size 104.27 T-type/W size 104.27 T-type/H size 104.27 T-type/C size 104.27 W-type size 104.27 830V size 104.27 COB size 104.27 |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 690 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 6 kV |
