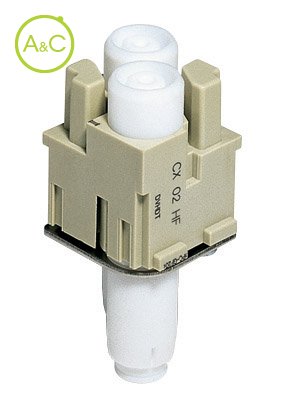

High voltage modular units 2P, crimp connections
Meer info over dit merk:
Ilme
Ilme
- General
| Article Number | CX 02 HF* |
| Pollution Degree | 3 |
| Number Of Poles | 2 |
| Connection Type | Crimp connection |
| Contact Type | Female |
| Remark | Only for bulkhead mounting housings, high construction housings or high construction hoods |
| Required Crimp Contacts | CCFA 0.3, CCFA 0.5, CCFA 0.7, CCFA 1.0, CCFA 1.5, CCFA 2.5, CCFA 3.0, CCFA 4.0, CCFD 0.3, CCFD 0.5, CCFD 0.7, CCFD 1.0, CCFD 1.5, CCFD 2.5, CCFD 3.0, CCFD 4.0, CCFC 0.3, CCFC 0.5, CCFF 0.3, CCFF 0.5, CCF2D 0.3, size 44.27mixo-CCF2D 5.0, CCF2D 0.7, CCF2D 1.0, CCF2D 1.5, CCF2D 2.5, CCF2D 3.0, CCF2D 4.0, CCFJD 0.3, size 44.27mixo-CCFJD 5.0, CCFJD 0.7, CCFJD 1.0, CCFJD 1.5, CCFJD 2.5, CCFJD 3.0, CCFJD 4.0 |
| Extra Information | Contact insert without contacts |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 2900/5000 V |
| Over Voltage Category | IV |
| Rated Surge Voltage | 15 kV |
Eigenschappen verschillen tussen varianten en subvarianten
