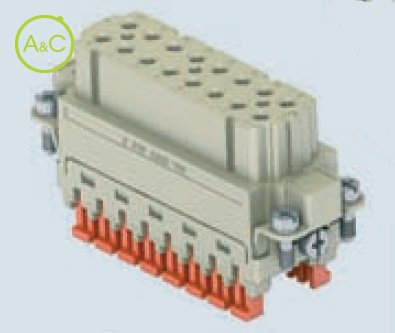

Inserts, 32P + PE, Spring terminal connections

  • Female inserts with female contacts
  • Silver plated contacts
Download product sheet
  • General
Article Number CSAHF 16
Pollution Degree 3
Number Of Poles 32
Connection Type Spring clamp connection
Contact Type Female
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Pin Numbers 1-16
Min. Cross Section With End Sleeve 0.14 mm²
Max. Cross Section With End Sleeve 1.5 mm²
Min. Cross Section Without End Sleeve 0.14 mm²
Max. Cross Section Without End Sleeve 2.5 mm²
Required Housing C-type size 66.40
W-type size 66.40
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 16 A
Nominal Rated Voltage 250 V
Over Voltage Category III
Rated Surge Voltage 4 kV
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
