Receptacle Contact AWG 28 to 20

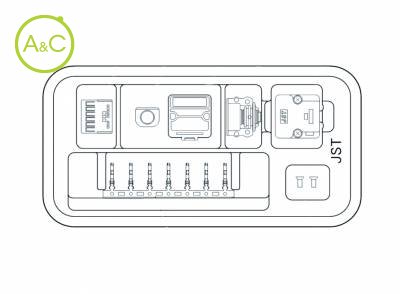

JFA CONNECTOR J1700 series

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Applicable Wire

AWG 24 to 20
AWG 28 to 24

Article Number	SJ1F-01GF-P0.8
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.0mm Pitch Connector Kit for Motor
Applicable Wire Size	0.20 to 0.5 (AWG #24 to #20) mm²
Connection Type	Factory Automation Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Remark	Waterproof

Article Number	SJ1F-002GF-P0.8
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.0mm Pitch Connector Kit for Motor
Applicable Wire Size	0.08 to 0.20 (AWG #28 to #24) mm²
Connection Type	Factory Automation Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Remark	Waterproof

Eigenschappen verschillen tussen varianten en subvarianten

6 Circuit connector for power supply of servomotor. This connector is supplied in kits, including all components. Waterproof grade: Grade 5 ingress protection of JIS C 0920 (IEC 60529 IPX5) Standards UL Recognized E60389 RoHS Compliant
