Number Of Poles
| Article Number |
SUHR-02V-S |
| Number Of Contacts |
2 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.8mm Pitch Disconnectable Crimp Style |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.80 mm |
| Rated Current (ac/dc) |
1.0 (WG #28) A |
| Rated Voltage (ac/dc) |
30 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
| Article Number |
SUHR-05V-S |
SUHR-05V-S-B |
| Number Of Contacts |
5 |
5 |
| Upper Temperature |
+85 °C |
+85 °C |
| Lower Temperature |
-25 °C |
-25 °C |
| General Description |
0.8mm Pitch Disconnectable Crimp Style |
0.8mm Pitch Disconnectable Crimp Style |
| Connection Type |
Printed Circuit Board Connectors |
Printed Circuit Board Connectors |
| Pitch / Style |
0.80 mm |
0.80 mm |
| Rated Current (ac/dc) |
1.0 (WG #28) A |
1.0 (WG #28) A |
| Rated Voltage (ac/dc) |
30 V |
30 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
Surface Mount Technology (SMT) |
| Article Number |
SUHR-06V-S |
SUHR-06V-S-B |
| Number Of Contacts |
6 |
6 |
| Upper Temperature |
+85 °C |
+85 °C |
| Lower Temperature |
-25 °C |
-25 °C |
| General Description |
0.8mm Pitch Disconnectable Crimp Style |
0.8mm Pitch Disconnectable Crimp Style |
| Connection Type |
Printed Circuit Board Connectors |
Printed Circuit Board Connectors |
| Pitch / Style |
0.80 mm |
0.80 mm |
| Rated Current (ac/dc) |
1.0 (WG #28) A |
1.0 (WG #28) A |
| Rated Voltage (ac/dc) |
30 V |
30 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
Surface Mount Technology (SMT) |
| Article Number |
SUHR-10V-S |
| Number Of Contacts |
10 |
| Upper Temperature |
+85 °C |
| Lower Temperature |
-25 °C |
| General Description |
0.8mm Pitch Disconnectable Crimp Style |
| Connection Type |
Printed Circuit Board Connectors |
| Pitch / Style |
0.80 mm |
| Rated Current (ac/dc) |
1.0 (WG #28) A |
| Rated Voltage (ac/dc) |
30 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
| Article Number |
SUHR-12V-S |
SUHR-12V-S-B |
| Number Of Contacts |
12 |
12 |
| Upper Temperature |
+85 °C |
+85 °C |
| Lower Temperature |
-25 °C |
-25 °C |
| General Description |
0.8mm Pitch Disconnectable Crimp Style |
0.8mm Pitch Disconnectable Crimp Style |
| Connection Type |
Printed Circuit Board Connectors |
Printed Circuit Board Connectors |
| Pitch / Style |
0.80 mm |
0.80 mm |
| Rated Current (ac/dc) |
1.0 (WG #28) A |
1.0 (WG #28) A |
| Rated Voltage (ac/dc) |
30 V |
30 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
Surface Mount Technology (SMT) |
| Article Number |
SUHR-14V-S |
SUHR-14V-S-B |
| Number Of Contacts |
14 |
14 |
| Upper Temperature |
+85 °C |
+85 °C |
| Lower Temperature |
-25 °C |
-25 °C |
| General Description |
0.8mm Pitch Disconnectable Crimp Style |
0.8mm Pitch Disconnectable Crimp Style |
| Connection Type |
Printed Circuit Board Connectors |
Printed Circuit Board Connectors |
| Pitch / Style |
0.80 mm |
0.80 mm |
| Rated Current (ac/dc) |
1.0 (WG #28) A |
1.0 (WG #28) A |
| Rated Voltage (ac/dc) |
30 V |
30 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
Surface Mount Technology (SMT) |
| Article Number |
SUHR-16V-S |
SUHR-16V-S-B |
| Number Of Contacts |
16 |
16 |
| Upper Temperature |
+85 °C |
+85 °C |
| Lower Temperature |
-25 °C |
-25 °C |
| General Description |
0.8mm Pitch Disconnectable Crimp Style |
0.8mm Pitch Disconnectable Crimp Style |
| Connection Type |
Printed Circuit Board Connectors |
Printed Circuit Board Connectors |
| Pitch / Style |
0.80 mm |
0.80 mm |
| Rated Current (ac/dc) |
1.0 (WG #28) A |
1.0 (WG #28) A |
| Rated Voltage (ac/dc) |
30 V |
30 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
Surface Mount Technology (SMT) |
| Article Number |
SUHR-20V-S |
SUHR-20V-S-B |
| Number Of Contacts |
20 |
20 |
| Upper Temperature |
+85 °C |
+85 °C |
| Lower Temperature |
-25 °C |
-25 °C |
| General Description |
0.8mm Pitch Disconnectable Crimp Style |
0.8mm Pitch Disconnectable Crimp Style |
| Connection Type |
Printed Circuit Board Connectors |
Printed Circuit Board Connectors |
| Pitch / Style |
0.80 mm |
0.80 mm |
| Rated Current (ac/dc) |
1.0 (WG #28) A |
1.0 (WG #28) A |
| Rated Voltage (ac/dc) |
30 V |
30 V |
| Pcb Mount Style |
Surface Mount Technology (SMT) |
Surface Mount Technology (SMT) |
Eigenschappen verschillen tussen varianten en subvarianten

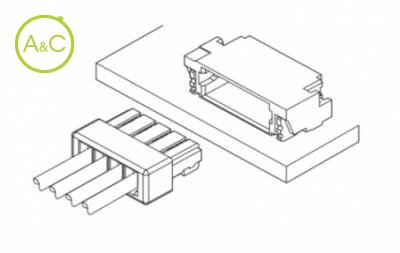

This connector was developed for use with the crimping type SUR header which was designed for the 0.8mm pitch IDC wire to board connector.
The SUH connector adopted the first crimping method in a minimum 0.8mm pitch of the wire to board type connector.
Housing lance method provides the good workability and a construction contact method provides the excellent contact reliability.
SUR header in common use
Sharing header with IDC type SUR connector, the degree of freedom of designing the variegated routing harness on PCB is improved.
Current rating 1.0A
By designing the applicable wire range to be AWG#28, the electric current of 1.0A can be applied to the connector.
Miniaturisation

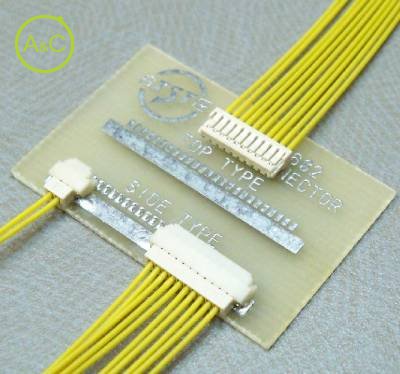

Side entry: Mounting height 1.75mm depth 4.1mm
Top entry: Mounting height 4.15mm depth 2.25mm
Comparing with 1.0mm pitch crimping type SH connector, approximately 44% in the occupation area of PCB reduced in the side entry type header.
RoHS Compliant
