Side Entry Shrouded Header SMT

SUR CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	SM02B-SURS-TF
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM03B-SURS-TF
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM04B-SURS-TF
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM05B-SURS-TF
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM06B-SURS-TF
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM08B-SURS-TF
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM10B-SURS-TF
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM12B-SURS-TF
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM14B-SURS-TF
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM15B-SURS-TF
Number Of Contacts	15
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM16B-SURS-TF
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM17B-SURS-TF
Number Of Contacts	17
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM20B-SURS-TF
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM22B-SURS-TF
Number Of Contacts	22
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.8mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.80 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Eigenschappen verschillen tussen varianten en subvarianten

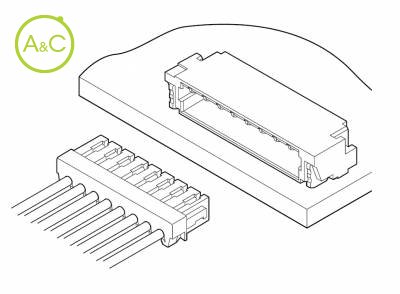

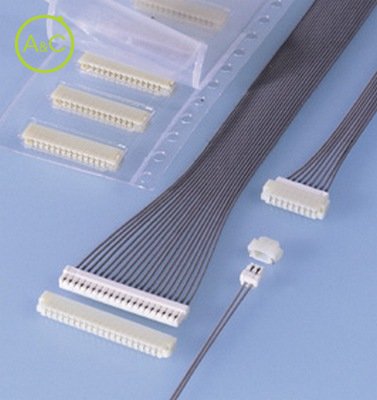

The worlds first 0.8mm (.031") pitch wire-to-board insulation displacement connector. Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum pick and place equipment. 3-point grip construction The 3-point insulation grip feature and the strain relief ensure a firm grip on terminated wires and protection of the insulation displacement connection from possible damage. Super fine wires are applicable Applicable wire is of AWG #32 with only 0.38mm (0.15") O.D. With this super fine wire, routing of wires is easy. Shrouded header The header is fully shrouded, but remains thin. Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
