Applicable Wire
- AWG 18 to 14
- AWG 20 to 16
- AWG 26 to 20
Article Number | SVYF-41T-P0.5A-13.5 | SYF-41T-P0.5A |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 6.5mm Pitch Disconnectable Crimp Style | 6.5mm Pitch Disconnectable Crimp Style |
Applicable Wire Size | 0.5 to 1.25 (AWG #20 to #16) mm² | 0.5 to 1.25 (AWG #20 to #16) mm² |
Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
Pitch / Style | 6.50 mm | 6.50 mm |
Rated Current (ac/dc) | 15 A | 15 A |
Rated Voltage (ac/dc) | 300 V | 300 V |
Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
Remark | Insulation O.D. 2.0 to 3.4 mm | Insulation O.D. 2.0 to 3.4 mm |
Eigenschappen verschillen tussen varianten en subvarianten

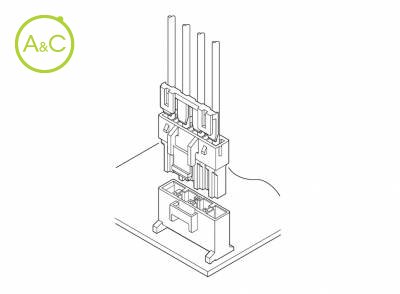

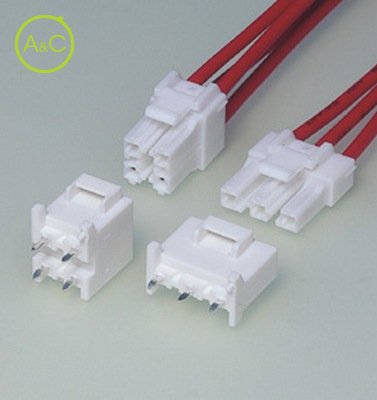

This VYH connector is designed for wire-to-board 6.5mm (.256") pitch connector corresponding to large current. Secondary retainer, which prevents from insufficient insertion of contact and coming off contact.
Corresponding to large current
Since material of header has superior electrical conductivity, they can correspond to large current.
Misinsertion prevention
Incorrect insertion is completely prevented by the special polarizing key.
Housing lance for contact retention
Housing lance provides stable contact retention force and allows the contact to be securely locked into the housing, without being damaged by external forces.
Secondary retainer
The secondary retainer is optionally available. This retainer ensures that the contacts are fully seated and locked in the housing prevents their accidental release. Installed after the contacts are inserted, the secondary retainer locks and secures the contacts (expect for 41 type contact when AWG #16 wire, and for 61 type contact are used.)
Standards
UL Recognized E60389
TUV R50036139
RoHS Compliant
