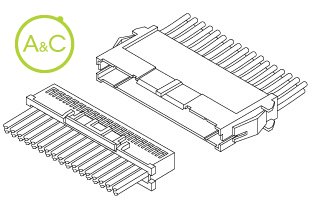

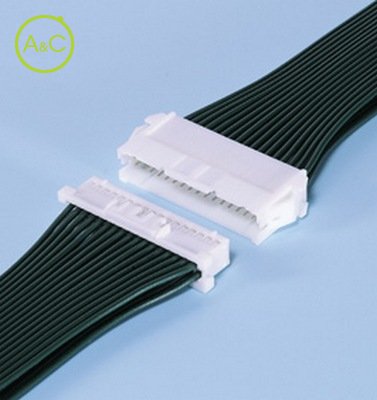

2.5mm (.098") pitch grid (dual in row) wire to wire connector that can mate with the socket of XAD connector (board-to-wire type). Possible to mate with the existing XAD socket The wire-to-wire connection with the existing XAD socket is possible. Inner type contact lance Inner type contact lance with stabilizer function provides stable contact retention force without deformation of the lance, and clear click feeling towards housing. Mountable on a variety of panels Possible to mount on panels of 0.5mm (.020") to 2.0mm (.079") thick. The design prevents from reverse mating and wire tangling toward panel section. Secure lock construction Secure lock construction prevents accidental diSConnection because of routing of wires or of vibration, and also reverse and different circuit numbers mating. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
