JST
Number Of Poles
- 2
| Article Number | SYR-02T | SYR-02TV |
| Number Of Contacts | 2 | 2 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
Eigenschappen verschillen tussen varianten en subvarianten

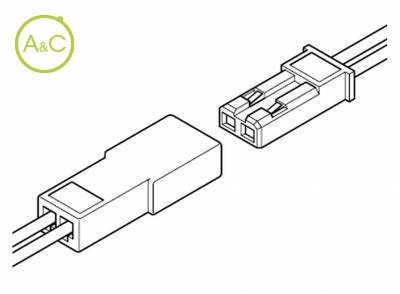

The RCY connector is a compact, 2.5mm (.098") pitch wire-to-wire connector for use with a variety of circuits, from signal circuits to power supply circuits, in electrical equipment which is becoming more and more compact. The employment of a free spring contact method ensures stable contact performance, and superb working efficiency of insertion and removal.
Use of a free spring contact for superb creep characteristics
The contact section features a free spring contact construction, which effectively minimizes stress (creep) caused by repeated insertion and removal is also smooth, ensuring stable connection performance.
Compact design
The RCY connector is designed to be compact. When mated, its overall length is just 23.3mm (.917") and its thickness is 4.0mm (.157").
Housing lock
Because a lock is provided inside the housing, external force is not applied to the lock.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
