Applicable Wire
- AWG 28 to 26
- AWG 30 to 28
Article Number | SZN-002T-P0.7K |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.5mm Pitch Board-in Crimp Style |
Applicable Wire Size | 0.08 to 0.13 (AWG #28 to #26) mm² |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.50 mm |
Rated Current (ac/dc) | 0.7 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Through-hole Technology (THT) |
Eigenschappen verschillen tussen varianten en subvarianten

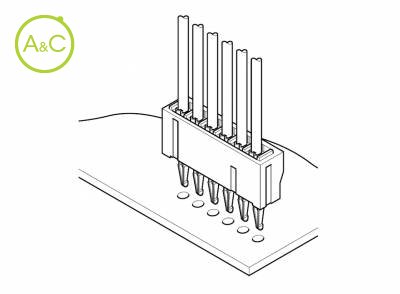

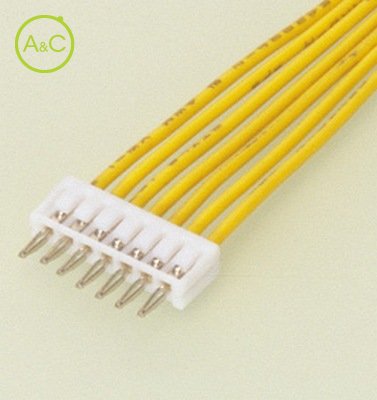

This low-profile, board-in connector, with a mounting height of only 4.25mm (.167") and a thickness of 2.4mm (.094"), is soldered directly onto printed circuit boards.
The solder tail of the contact is resilient for easy assembly. The housing lances facilitate insertion of contacts.
Slim, low-profile design
The SZN connector features a mounting height of just 4.25mm (.167") and a thickness of 2.4mm (.094").
Housing lances
The lances on the resilient housing ensure easy insertion and secure locking of the contact into the housing.
Easy mounting onto printed circuit boards
The solder tail of the contact is resilient so as to ensure easy assembly and provide a secure lock of the connector in the printed circuit board prior to soldering.
Rugged contact construction
The spring members of the resilient solder tail are joined together at the tip to prevent opening or deformation and to ensure easy handling.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
