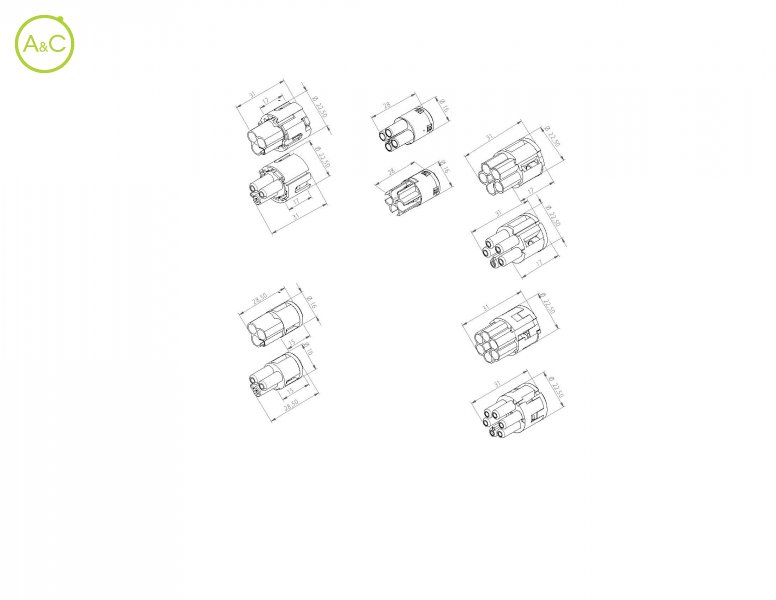

Number Of Poles
- 2
- 3 black
- 3 brown
- 3 green
- 5
- 6
Article Number | THB.023.A2B* | THP.023.A2B* | THB.023.A2C | THP.023.A2C |
Number Of Contacts | 2 | 2 | 2 | 2 |
Upper Temperature | +125 °C | +125 °C | +125 °C | +125 °C |
Lower Temperature | -40 °C | -40 °C | -40 °C | -40 °C |
Rated Voltage | 450 | 450 | 450 | 450 |
Pollution Degree | 2 | 2 | 2 | 2 |
Rated Current | 32 A | 17.5 A | 32 A | 17.5 A |
Remark | To be used only with TH388 - TH404 - TH405 - TH406 - TH408 - TH409. | To be used only with TH388 - TH404 - TH405 - TH406 - TH408 - TH409. | To be used only with TH388 - TH404 - TH405 - TH406 - TH408 - TH409. | To be used only with TH388 - TH404 - TH405 - TH406 - TH408 - TH409. |
Colour | black - yellow | black - yellow | yellow | yellow |
Contact Terminal | Contact screw terminals for cable section < 1,0 mm² | Piercing clip terminals max 1,5 mm² | Contact screw terminals for cable section < 1,0 mm² | Piercing clip terminals max 1,5 mm² |
Terminals | Screw | Piercing | Screw | Piercing |
Cable Section | max 4,0 mm² | 0,5 - 1,5 mm² | max 4,0 mm² | 0,5 - 1,5 mm² |
T Marking | T125 °C | T125 °C | T125 °C | T125 °C |
Impulse Withstand Category | II | II | II | II |
Impulse Withstand Voltage | 4 kV | 4 kV | 4 kV | 4 kV |
Tracking Index | PTI 175 | PTI 175 | PTI 175 | PTI 175 |
Terminal Block Housing | PA66 GF UL94 V0 GWT 960°C | PA66 GF UL94 V0 GWT 960°C | PA66 GF UL94 V0 GWT 960°C | PA66 GF UL94 V0 GWT 960°C |
Contact Screw Terminals | Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG) | Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG) | Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG) | Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG) |
Screw | M3 steel zinc plated | M3 steel zinc plated | M3 steel zinc brass plated | M3 steel zinc plated |
Standards | EN61984-2001 | EN61984-2001 | EN61984-2001 | EN61984-2001 |
Eigenschappen verschillen tussen varianten en subvarianten
