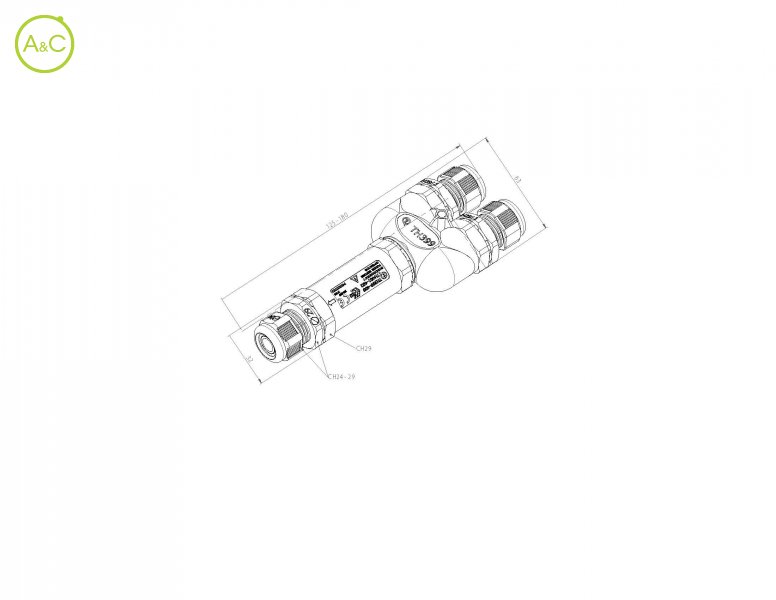

High protection In-line and junction with innovative cable glands (small version)

Y Type, WP Contact
Ø 10,5-17mm

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Techno

Number Of Poles

Article Number	THB.399.H2C.4	THB.399.H2C.5	THB.399.H2C.6
Number Of Contacts	2	2	2
Protection Degree	IP68 2 bar	IP68 2 bar	IP68 2 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	250	250	250
Rated Current	24 A	24 A	24 A
Product Shape (type: I, L, T, Y)	Y	Y	Y
Contact Terminal	WP contact for cable section < 1,0 mm²	WP contact for cable section < 1,0 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Screw	Screw
Cable Section	max 2,5 mm²	max 2,5 mm²	max 2,5 mm²
Cable Diameter Min-max A	10,5 - 14,0 mm	10,5 - 14,0 mm	14,0 - 17,0 mm
Cable Diameter Min-max B	10,5 - 14,0 mm	14,0 - 17,0 mm	14,0 - 17,0 mm
Cable Entries/exits	3 ways	3 ways	3 ways
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	20 m / 1 h	20 m / 1 h	20 m / 1 h
Tracking Index	PTI 250	PTI 250	PTI 250
Connector Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc plated	M3 steel zinc plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.399.H3C.4	THB.399.H3C.5	THB.399.H3C.6
Number Of Contacts	3	3	3
Protection Degree	IP68 2 bar	IP68 2 bar	IP68 2 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	250	250	250
Rated Current	24 A	24 A	24 A
Product Shape (type: I, L, T, Y)	Y	Y	Y
Contact Terminal	WP contact for cable section < 1,0 mm²	WP contact for cable section < 1,0 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Screw	Screw
Cable Section	max 2,5 mm²	max 2,5 mm²	max 2,5 mm²
Cable Diameter Min-max A	10,5 - 14,0 mm	10,5 - 14,0 mm	14,0 - 17,0 mm
Cable Diameter Min-max B	10,5 - 14,0 mm	14,0 - 17,0 mm	14,0 - 17,0 mm
Cable Entries/exits	3 ways	3 ways	3 ways
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	20 m / 1 h	20 m / 1 h	20 m / 1 h
Tracking Index	PTI 250	PTI 250	PTI 250
Connector Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA6 / PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)	TPE Rubber (gray RAL 7035)
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc plated	M3 steel zinc plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Eigenschappen verschillen tussen varianten en subvarianten
