Contact AWG 26 to 22

  • JWPF CONNECTOR
Download product sheet

Applicable Wire

  • AWG 26 to 22
Article Number SWPR-001T-P025 SWPT-001T-P025
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
General Description Waterproof Connectors (2mm Pitch Disconnectable Crimp Style (Wire to Wire)) Waterproof Connectors (2mm Pitch Disconnectable Crimp Style (Wire to Wire))
Applicable Wire Size 0.13 to 0.33 (AWG #26 to #22) mm² 0.13 to 0.33 (AWG #26 to #22) mm²
Connection Type Wire to Wire Connectors Wire to Wire Connectors
Pitch / Style 2.00 mm 2.00 mm
Rated Current (ac/dc) 3 A 3 A
Rated Voltage (ac/dc) 100 V 100 V
Remark Secure locking device Secure locking device
Extra Information Receptacle contact Tab contact
Eigenschappen verschillen tussen varianten en subvarianten

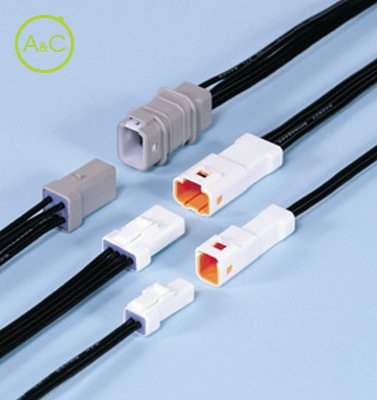

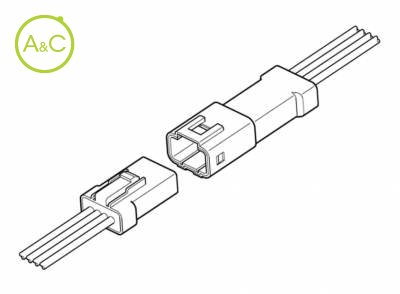

Waterproof Connectors - The JWPF Series Wire to Wire waterproof connector is designed for small applications that require resistance to water ingress. Uniquely constructed, this Waterproof Connector (2.0mm (.079") pitch) features a spring action housing to terminal lock, which assures smooth and easy insertion and firm contact retention. This waterproof connector also incorporates a solid rubber seal for wire side sealing, which facilitates a compact size and ensures a waterproof grade of more than 7 ingress protection of JIC C 0920 (IP X7 of IEC 60529). Water-proof grade More than grade 7 ingress protection of JIS C 0920. (IEC 60529 IPX7) Contained seal ring Seal ring is applied for complete sealing at mating side that is contained in the tab housing which protects from dust, SCratch, etc. Solid rubber seal Solid rubber seal is used for wire side sealing that makes the size compact. Double-spring construction Contact has double-spring construction, main spring and assist spring, that ensures superior contact force. Housing-to-terminal locks Spring action housing-to-terminal locks are an inherent part of the housing, and assure smooth contact insertion and firm contact retention yet with low insertion force. Inner-housing lock This inter-housing lock secures the plug to the receptacles and prevents accidental diSConnection. The lock with protector on both sides is protected and is not affected by external forces that might result from the routing of wires. Standards UL Recognized E60389 RoHS Compliant
