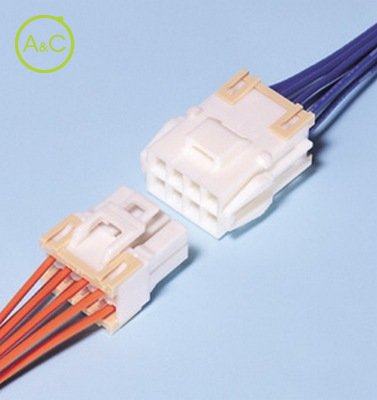

Receptacle Housing For Pin Contact

YL CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	YLR-01VF
Number Of Contacts	1
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.50 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Remark *	Without lances

Article Number	YLR-02V	YLR-02VF
Number Of Contacts	2	2
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style	4.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	4.50 mm	4.50 mm
Rated Current (ac/dc)	10 A	10 A
Rated Voltage (ac/dc)	300 V	300 V
Remark	Secure locking device	Secure locking device
Remark *	Without lances	Without lances

Article Number	YLR-03V	YLR-03VF
Number Of Contacts	3	3
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style	4.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	4.50 mm	4.50 mm
Rated Current (ac/dc)	10 A	10 A
Rated Voltage (ac/dc)	300 V	300 V
Remark	Secure locking device	Secure locking device
Remark *	Without lances	Without lances

Article Number	YLR-04V	YLR-04VF
Number Of Contacts	4	4
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style	4.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	4.50 mm	4.50 mm
Rated Current (ac/dc)	10 A	10 A
Rated Voltage (ac/dc)	300 V	300 V
Remark	Secure locking device	Secure locking device
Remark *	Without lances	Without lances

Article Number	YLR-06V	YLR-06VF
Number Of Contacts	6	6
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style	4.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	4.50 mm	4.50 mm
Rated Current (ac/dc)	10 A	10 A
Rated Voltage (ac/dc)	300 V	300 V
Remark	Secure locking device	Secure locking device
Remark *	Without lances	Without lances

Article Number	YLR-08V	YLR-08VF
Number Of Contacts	8	8
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style	4.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	4.50 mm	4.50 mm
Rated Current (ac/dc)	10 A	10 A
Rated Voltage (ac/dc)	300 V	300 V
Remark	Secure locking device	Secure locking device
Remark *	Without lances	Without lances

Article Number	YLR-09V
Number Of Contacts	9
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.50 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Remark *	Without lances

Article Number	YLR-12V	YLR-12VA
Number Of Contacts	12	12
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style	4.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	4.50 mm	4.50 mm
Rated Current (ac/dc)	10 A	10 A
Rated Voltage (ac/dc)	300 V	300 V
Remark	Secure locking device	Secure locking device
Remark *	3 rows	2 rows

Article Number	YLR-15V
Number Of Contacts	15
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.50 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Remark *	Without lances

Article Number	YLR-16V
Number Of Contacts	16
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.50 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Remark *	Without lances

Article Number	YLR-21V
Number Of Contacts	21
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.50 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Remark *	Without lances

Eigenschappen verschillen tussen varianten en subvarianten

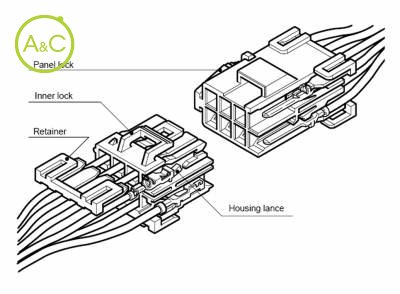

The retainer features added protection against non-insertion or diSConnection. Housing lance The resilient plastic housing lances secure the contacts in the housing. Since the lances are in the housings rather than on the contacts, they are not affected by handling, and allow the contacts to be lightly inserted without undue force. This establishes a feeling of uniform insertion and a noticeable change in that feeling when insertion is completed. Secondary retainers The secondary retainers enhance safety in case of partial insertion or accidental release of the contact. Even if a contact is inserted incompletely, the retainer guides the contact to the proper position and securely locks it in place (except for connectors with three row construction and when AWG #16 wire is used.) Inter-housing lock This inter-housing lock secures the plug to the receptacle and prevents accidental diSConnection. The lock is protected and is not affected by external forces that might result from the routing of wires. Panel lock construction Our unique compact panel lock is designed to prevent tangling with wires and accidental breakage because of handling. Standards UL Recognized E60389 CSA Certified LR20812 TUV R9351052 RoHS Compliant
