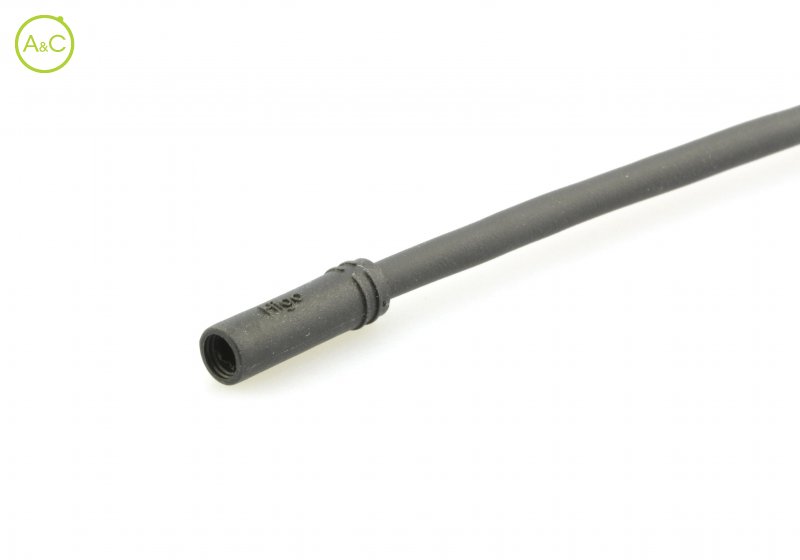

Connectoren
Terug naar productoverzicht
Number Of Poles
- 2
Article Number | Z205BG P 00 DS 1000 | Z205BG P 00 AW 1000 | Z205BG P 00 S4 1000 |
Color | Black | Black | Black |

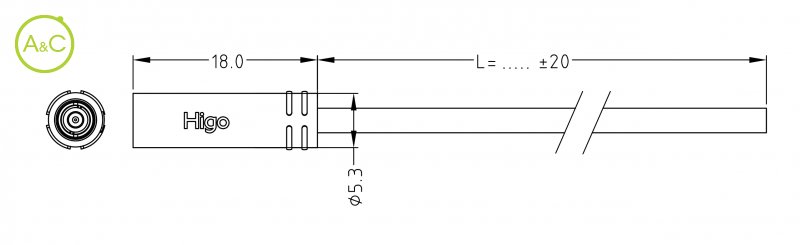

Connector Diameter | 5.3 mm | 5.3 mm | 5.3 mm |
Wire Section | 2 x 0,14 mm² | 2 x 0,14 mm² | 2 x 0,34 mm² |
Cable Length | 1000 mm | 1000 mm | 1000 mm |
Protection Degree | IP67 | IP67 | IP67 |
Mating Cycles | 200 times | 200 times | 200 times |
Upper Temperature | 80 °C | 80 °C | 80 °C |
Lower Temperature | -25 °C | -25 °C | -25 °C |
Rated Voltage | 48 V AC / 60 V DC | 48 V AC / 60 V DC | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ | ≤10 mΩ | ≤10 mΩ |
Material Of Contact | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
Cable Diameter | 2.4 mm | 2.4 mm | 3.9 mm |
Insulation Wire | FEP | FEP | FEP |
Remark | Other cable length/type on request | Other cable length/type on request | Other cable length/type on request |
Rated Current | 2 A | 2 A | 2 A |
Max. Insulation Resistance | ≥20 MΩ | ≥20 MΩ | ≥20 MΩ |
Contact Plating | Gold over Nickel | Gold over Nickel | Gold over Nickel |
Fitting Length | 29.5 mm | 29.5 mm | 29.5 mm |
Material Jacket | PVC | TPU | TPU |
Eigenschappen verschillen tussen varianten en subvarianten
